Attachment Frames

MINI HIGH LIFT

The MI Mini High Lift adds about 14” of additional stack height (as measured from the lower hinge point of your loader bucket) and features 3” tube construction. It connects to the handler via a standard pin connection. Compatible with: 2504 and 2505.

MI

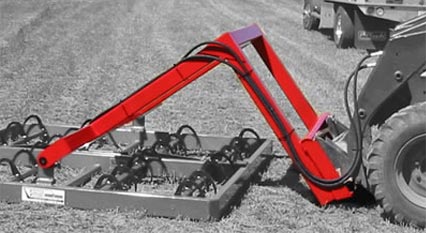

STANDARD HIGH LIFT

The ST Standard High Lift adds 28” of additional stack height (as measured from the lower hinge point of your loader bucket) and features 4” tube construction. It connects to the handler via a standard pin connection.

ST

EXTENDED ARM

The EX Extended Arm Attachment adds 28” of additional stack height (as measured from the lower hinge point of your loader bucket) and features 4” tube construction. It connects to the handler via a standard pin connection. It is a longer arm version of the ST, which gives the rotator option the room it needs to turn a package of bales. It also allows you to hook-up on the narrow end of a 6512 or 6515 handler.

EX

SLIP FORK

The SF Slip Fork Attachment allows multi-purpose forklifts to slide right into it and begin transporting hay. Its blade sleeves are custom-built to fit your forks and it connects to the handler via a standard pin connection.

SF

RIGID FORK

The RF Rigid Fork Attachment securely converts your forklift into a hay handler. It features 4” tube construction and mounts via a standard pin connection on the handler, and either a hook or pin-type mount on your forklift (specifications required with your order).

RF

BASE MOUNT

The “B” Mount is a rigid frame which is welded to the loader end of any bale handler. This allows for pushing to gather the bales, and gives the ability to tilt the load using the loader tilt function.

B

VERTICAL TILT

The VT Powered Vertical Tilt Attachment is adapted from our heavy-duty container loading equipment. It allows fork lifts to flip a layer vertically — making it easy to load your trailers from the font to the back and allowing full-height stacking all the way to the ceiling. It features rigid forklift mounts and dual hydraulic cylinders. Compatible with 5508, 5510, 6512, and 6515.

VT
